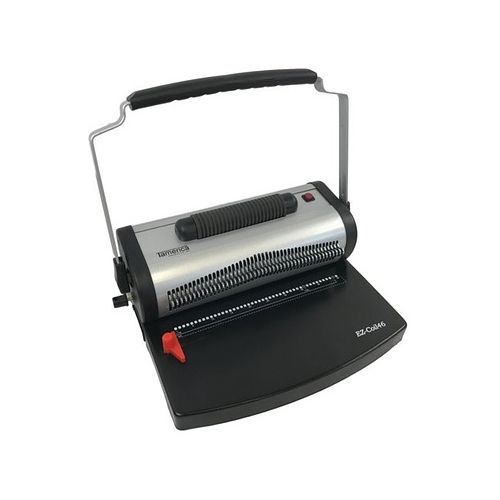

Tamerica EZ Coil 46 Plastic Coil Machine
The Tamerica EZ-Coil 46 is a perfect entry-level plastic coil binding system. This user-friendly system has a manual punch with 4:1 oval dies plus an electric powered roller inserter. It's perfect for low-volume business production but offers features found in more expensive systems. It can punch up to 15 sheets and can bind up to 220 sheets of 20lb paper. It is also equipped with 46 dis-engageable punch pins so it can bind a variety of different binding edges. The oval holes make inserting easy along with an adjustable punch depth for larger size documents.
Specifications
| Item # | 04TAMEZCOIL46 |
|---|---|
| Manufacturer | Tamerica |
| Manufacturer Part Number | EZ-COIL46 |
| Brand Name | Tamerica |
| Model | EZ Coil 46 |
| Maximum Binding Length | 11.7" |
| Punching Capacity | 15 Sheets* |
| Binding Style | 4:1 Pitch Spiral Binding Coil (Up to 25mm) |
| Maximum Binding Size | 25mm (1") Binding Coils |
| Disengageable Pins | Yes, All 46 Dies |
| Operation | Manual Punch & Electric Bind |
| Manufacturer's Warranty | 1 Year Limited Manufacturer's Warranty |
| Dimensions | 17.3” x 11” x 9” |
| Power Supply | 110V 60Hz |
| Machine Weight | 21 lbs. |
| Shipping Weight | 28 lbs. |
Description
Designed for low-volume applications, the Tamerica EZ Coil 46 Plastic Coil Machine is a convenient and user-friendly entry-level binding system with manual operation and an electric roller inserter. It punches with a 4:1 oval pattern that creates 46 punch holes. The disengageable dies allow you to use the machine for a range of binding edges, while the adjustable punch depth ensures you can easily punch larger documents. Tamerica EZ Coil 46 Plastic Coil Machine can easily punch through 15 sheets of paper at a time and it can bind stacks of up to 220 sheets of 20lb paper. Plus, this machine comes with a 1-year manufacturer’s warranty, for more peace of mind.
Features:
- User-friendly manual coil punch
- Electric roller inserter
- 4:1 pattern
- 4mm x 5mm oval holes
- Punching capacity of up to 15 sheets of 20lb
- Binding capacity of up to 220 sheets of 20lb
- Horizontal, open throat paper loading system
- 46 disengageable dies
- Adjustable punching depth and margin edge guide
- Power Supply: 110V/60Hz
- 1-year manufacturer’s warranty
